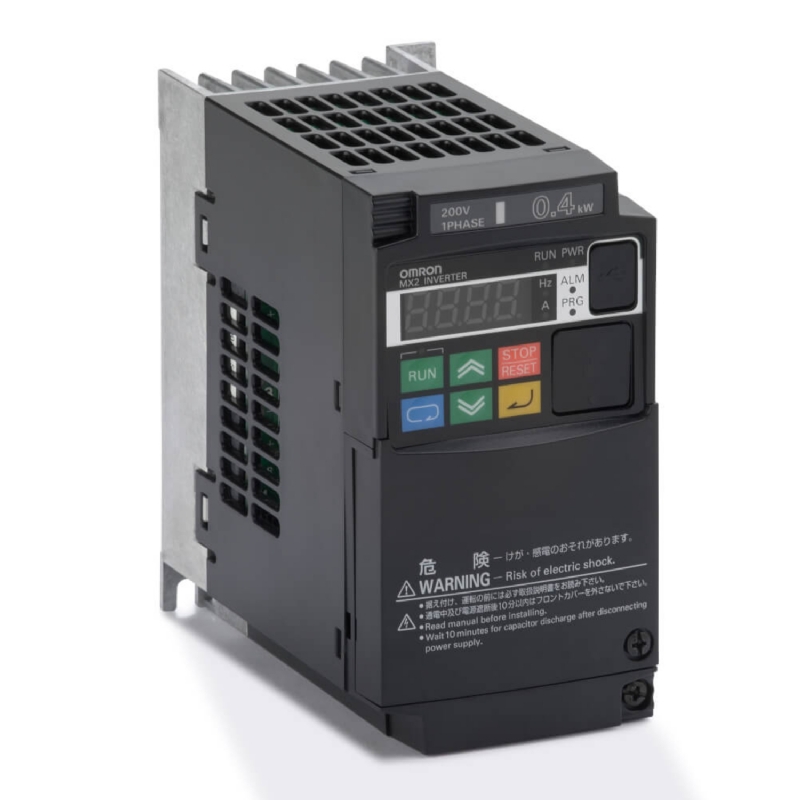

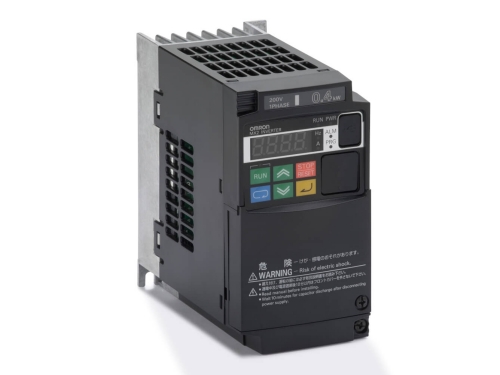

3G3MX2-AB004-E MX inverter drive, 0.4/0.55 kW (HD/ND), 3.0/3.5 A (HD/ND), 200 VAC, 1~ input, sensorless vector, max. output freq. 580Hz

Inverter control method : Open loop V/f, Open loop vector
Drive supply voltage : 230 V single phase
Max. motor output at constant torque (HD) : 0.4 kW
Max. motor output at variable torque (ND) : 0.55 kW
Built in EMC filter : x
Degree of protection (IP) : IP20
Finless type : x
Compatible motor type : Induction or asynchronous motor, Permanent magnet motor
Regenerative solutions : As inverter option
Communication port(s) : MODBUS Slave, Serial RS-485, USB
Communication option(s) :
CompoNet Slave, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, PROFIBUS DP Slave
Height : 128 mm
Width : 68 mm
Depth : 123 mm
Weight : 1100 g
